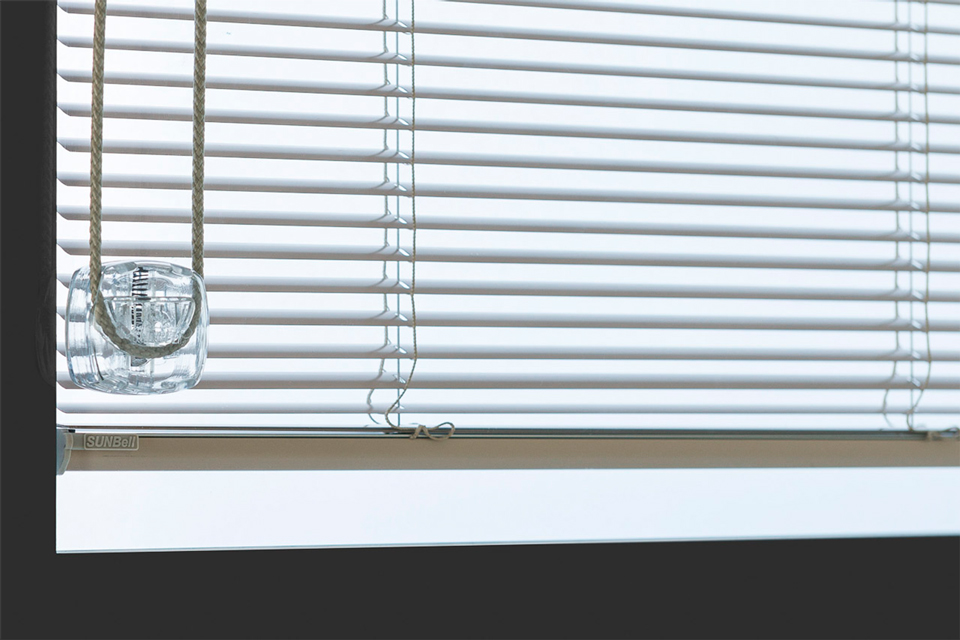

Cord operated control
Suncord

Magnetic knob control
Suncord

The Suncord magnetic cord or knob control for integral blinds

Suncord is the system with manual cord control which, thanks to the magnetic transmission, allows the lifting and orientation of the slats

Simplicity and reliability make this system ideal for applications of all kinds.
For slat orientation only, the control with removable magnetic knob is alternatively available.

The Advantages

Easy installation

Ideal for renovations and replacements of windows and doors with external control to the insulating glass. Compatible with previous cord models.

Movements and accessories

No electrical installation required, magnetic system with manual operation.

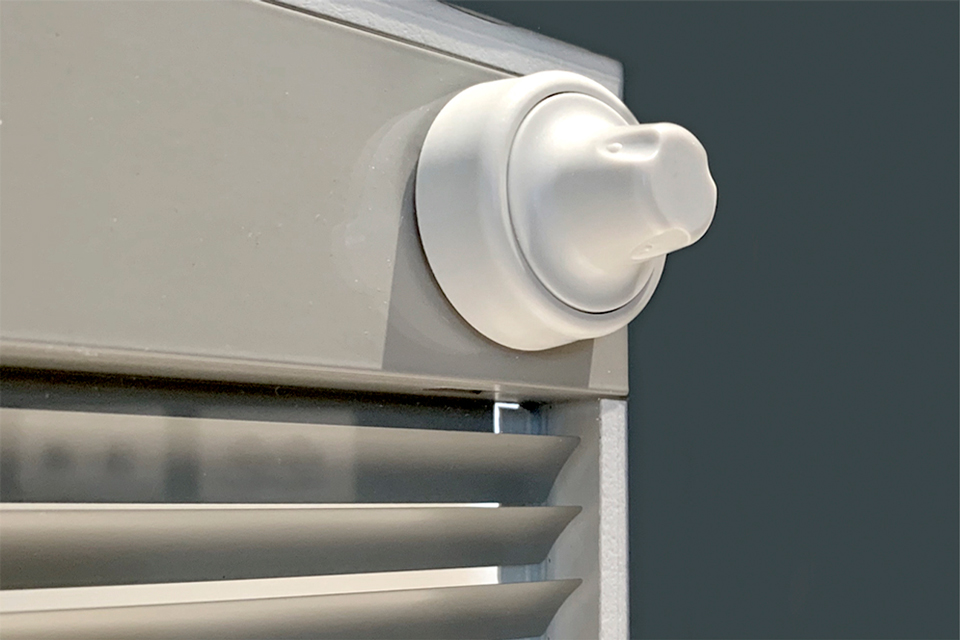

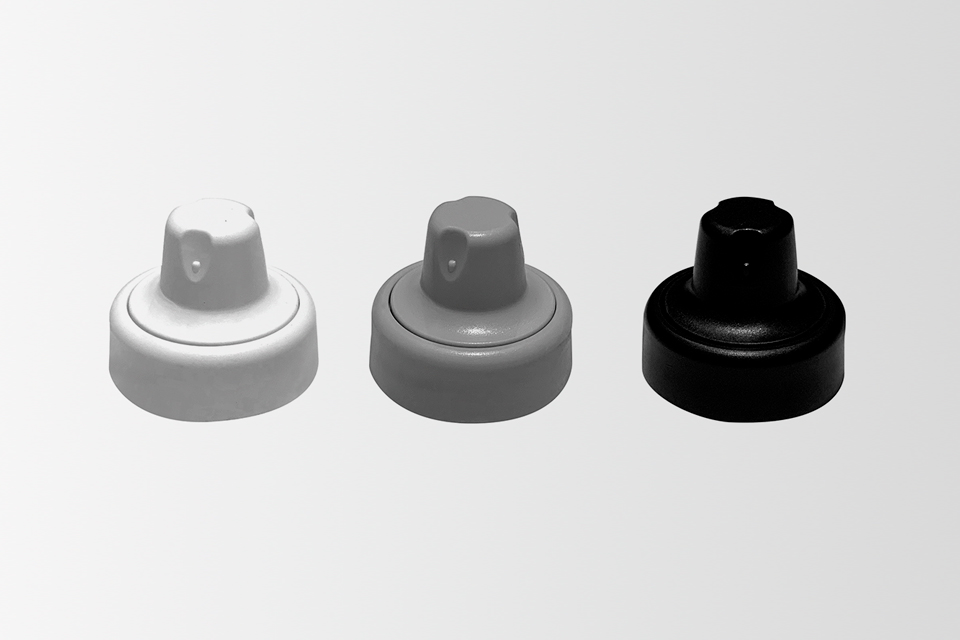

Magnetic knob

Magnetic knob is available for orientation function only and can only be installed on Venetian blinds.

How to install them?

Control Positioning

a. Clean and dry the glass thoroughly.
b. Remove the foil from the sticker.
c. Be sure to centre the circular hole on the base with the circular magnet inside the glass.
d. Stick the base of the control to the glass.

Position the control on the base:

Hook the two upper flaps.
Push the control on the lower flap, until it clicks.

Position the tensioner

Remove the film and stick the tensioner on the glass using the adhesive.
The tensioner must be aligned with the upper control.

Place the tensioning mechanism:

Place the tensioning mechanism so that the spring is compressed
for about a quarter of its own run, as shown in the figure

The blinds available

Venetian

Slat 12,5mm / 15mm

Finishings:



Aluminum Channels:
20mm, 22mm, 27mm
  Silver
  Black

Warm Edge Channels:
20mm, 22mm
  Silver
  Black

Pleated
Pleat 16mm e 20mm

Finishings:



Aluminum Channels:
22mm, 27mm
  Silver
  Black

Warm Edge Channels:
22mm, 27mm
  Grey
  Black

Duet Filtering

Pleat 20mm

Finishings:



Aluminum Channels:
27mm
  Silver
  Black

Warm Edge Channels:
27mm
  Grey
  Black

Duet Blackout

Pleat 16mm e 20mm

Finishings:



Aluminum Channels:
22mm, 27mm
  Silver
  Black

Warm Edge Channels:
22mm, 27mm
  Grey
  Black
