The patented Up&Down battery-powered control for blinds in double glazing

The patented Sun Bell solution for motorised blinds with rechargeable battery, magnetic connection and electronic management outside the double glazing.

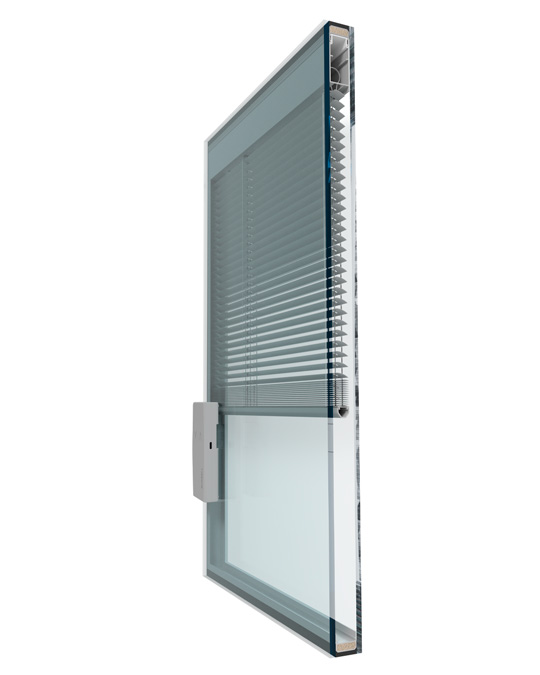

Born from an intuition of the Sun Bell team, this unique system guarantees all the advantages of a motorised blind without the complexity of an electrical system. The integrated blind is managed by a device external to the double glazing equipped with magnetic connection, rechargeable battery and available in the version with remote control.

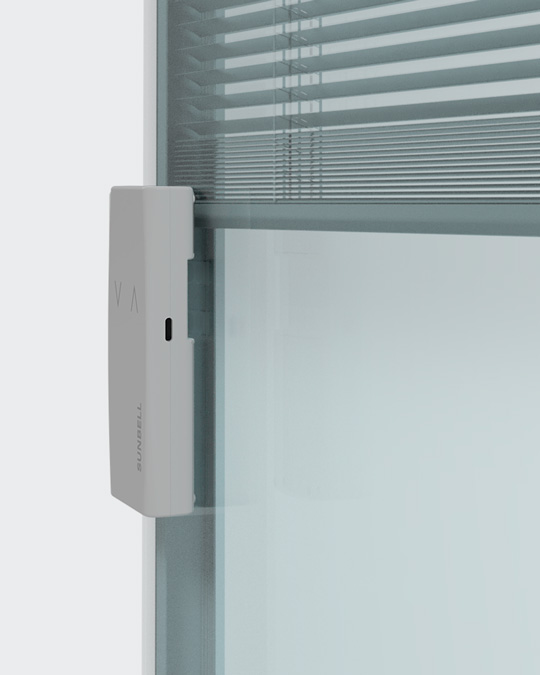

From today the system is equipped with patented SPIRIT LEVEL technology, which detects the inclination of the window and automatically blocks the movement of the blind, avoiding possible malfunctions.

The advantages

Advanced Adaptability

Innovative design, functionality, flexibility and resistance: it does not require dedicated electrical systems and adapts to sliding windows. Also available in the version with photovoltaic panel.

Safety and Duration

This mechanism has been designed to ensure greater safety and a longer life of the product.

How to install

sunbell-istruzioni-installazione-UP&DOWN-VETRO

On glass

Clean and dry the glass thoroughly.
Remove the film from the back of the connector.
Stick the connector to the glass.
Let the glue dry for 72 hours.

NB: Preferably do this at a temperature of about 20°C. If the temperature is lower, use a hair dryer to bring the bonding surface to about 20°C.

sunbell-istruzioni-installazione-UP&DOWN-INFISSO

On window frames

Drill a hole of 8 mm in the window frame. Slide the cable and connector into the 8 mm hole. With a light pressure on the back of the magnetic connector, remove the plugs. Screw the connector to the window with 2 screws instead of the plugs.
